SKU: TS_GPS
TKY GPS Batwing Fairing with Full GPS Stereo 6" X 9" Marine Speakers Installed

TKY GPS Batwing Fairing with Full GPS Stereo and 6" x 9" Marine Speakers Pre-Installed

The TKY GPS Batwing Fairing is the ultimate fairing in style, comfort, audio, and entertainment. With a preinstalled Android navigation system, the TKY GPS Fairing provides not only an accurate and reliable satellite mapping system, but also high-level digital media entertainment with the ability to download apps, stream movies, browse the internet, and much more.

Hand-laid fiberglass construction, a pre-installed stereo system, and a built-in Android navigation system combine GPS navigation and music enjoyment even at high speeds.

What's Included

• Hand-Laid Fiberglass Batwing Fairing
• Powerful Android 10.0 GPS System
• 2 x 6" x 9" TKY Waterproof Speakers
• Choice of Fairing Finish
• Stainless Steel Mounting System
• Acrylic Windshield: Clear or Tinted, 5" / 8"
• Radio Antenna: AM / FM Radio (Preinstalled)
• Wiring Harness: Waterproof Connector
• Water-Resistant Radio Cover
• Preinstalled 12V Power Plug
• AUX Cable
• 6 Month Manufacturer Warranty
• *Some models require original OEM mounts (see notes below)*

Key Features

• Detachable Outer and Inner Fairing
• Direct Bolt-On Mounting
• Bluetooth / Radio / USB Port
• Wind and Weather Protection
• Double Rubber-Sealed Edges
• GPS Navigation

Optional Add-Ons

• Lock and Key Mount for Select Harley Models
• Gel Coat / Gloss Paint
• Curvy Windshield for Improved Wind Deflection
• 10" Windshields
• Bluetooth Controller
• TKY Tri-Pouch
• Smartphone Holder
• Windshield Trim
• 320W - 2 Channel Double Rock Amplifier
• Klock Werks Flare Windshield

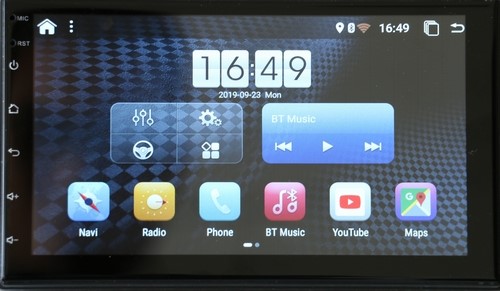

Android 10.0 GPS Stereo

Specifications

• Powered by Android 10.0 OS with 2GB RAM for smooth performance
• 7-inch HD touchscreen
• Split-screen mode allows you to run two apps simultaneously for multitasking
• Built-in navigation with support for online maps or offline downloads
• HDMI output connects to compatible headrest or external monitors
• Subwoofer output and adjustable volume
• Supports hands-free Bluetooth calling, music display, and playback

Additional Details

• Compatible with a wide range of audio and video formats, including MP3, MP4, WMA, and more
• USB input supports charging and media playback
• Multi-language support with options for 85 languages
• Installation size: 182mm (W) x 131mm (D) x 104mm (H)
• Operating voltage: 12V, with a range of 9V-16V

The Nakamichi NAM 5230 is a 7-inch Android car stereo with wireless Apple CarPlay and Android Auto. Equipped with advanced features and a sleek display, it is an ideal upgrade for your motorcycle fairing.

Features

• 7-inch Full HD IPS display with 1080p resolution
• Wireless Apple CarPlay and Android Auto
• 2GB RAM and 32GB storage
• Built-in 12-band EQ with sound adjustments, including support for heavy bass and loud gain
• High-sensitivity digital radio tuner with support for 720/1080p video playback and picture-in-picture functionality
• Integrated Bluetooth 4.0 for hands-free calling, music streaming, and network sharing
• Dual USB ports for charging, DVR playback, dashcam preview, and more
• Built-in WiFi and GPS for navigation, internet access, and enhanced driving assistance
• Maximum power output of 50W x 4 for robust audio performance

TKY 6" x 9" Waterproof Speakers

• 3-Way 6" x 9" Waterproof Speakers
• 150W RMS / 350W Peak Power Each
• 20 oz Magnets

Fairing Finish

Ready to Paint Primer

Gloss Black Paint

Windshields

The fairing windshield serves as additional protection against the wind and helps prevent wind buffeting from affecting a rider's head.

Windshields are offered in clear or tinted finishes in 5", 8", or 10" sizes. The average rider will look over the 5" windshield, be at eye level with the 8", and look through the 10" windshield. Various windshield sizes can be used on the fairing by easily removing the windshield and replacing it with a new one.

Windshields can be ordered separately to allow any size or color combination. Taller windshields provide more protection from the wind, while shorter windshields provide a sleeker look.

TKY Fairing Amplifier

• 2 channels
• SMD and 4-layer glass fiber PCB design
• Mini and compact size
• Three start-up modes selectable: REM / DC Offset / AUDIO
• Multiple protection modes: thermal / over-current / short circuit
• Adjustable and selectable HP / LP and signal
• Advanced IR Class D design
• Output Power (RMS) @ 4Ω: 2 x 100W
• Output Power (RMS) @ 2Ω: 2 x 160W
• Output Power (RMS) @ 4Ω bridged: 1 x 320W
• Maximum Output Power: 320W
• Frequency Response: 20Hz-20KHz

Optional Bluetooth Handlebar Controller

Optional Windshield Tri-Pouch

• Add extra storage to your TKY Fairing
• Features three small front pouches and one large zippered pouch

Optional Smartphone Holder With Fairing Mount

The Smartphone Holder is designed to be quick and simple. Just flip the lever to lock your smartphone into the secure rubber-molded fingers.

• Intuitive ball mounting system allows for a broad range of angle adjustment
• Fits devices from 2 1/8" to 3 1/2" wide

Optional Windshield Trims

1. Stainless Solid Windshield Trim

2. Stainless Slotted Windshield Trim

3. Contrast Black Slotted Windshield Trim

4. ABS Plastic Chrome Skull Windshield Trim

Klock Werks Flare Windshield

The Klock Werks Flare windshield is an additional windshield included with the fairing. This windshield has a flip toward the top that helps deflect additional wind at high speeds and further protects riders from wind buffeting.

Notes

• The addition of an amplifier will cause AM/FM radio signal interference on local radio stations
• The following bikes require the use of factory windshield mounts: Softails, Touring Harleys, Vulcan 2000, and 1700 LT Classics
• The following bikes require the speedometer to be relocated: All Victory, Valkyrie, Sabre, Marauder 1600, Mean Streak, Road King Police
• The following bike requires the passing lamps to be removed: Victory Cross Roads Classic LE 12-14
• The following bike requires the factory mini fairing to be removed: Harley Sport Glide 18' Inverted Forks
