Corbin's Y-RS-5-DT Dual Touring Seat, No Heat is made specifically for Yamaha Royal Star (2005-2009).
Features:
- Rider Seating, standard: 15" wide x 15" long
- Vertical w/ #02-S: 15"
- Passenger: 12" wide x 13" long
- This is the No Heat version, HEATED version sold separately.
- Installation: Dual Touring Saddle installs easily on your Royal star using the stock bolts at the front and rear. You will also need to remove the passenger pillion bracket from the center of your fender as shown here. This simply requires you take out three bolts.

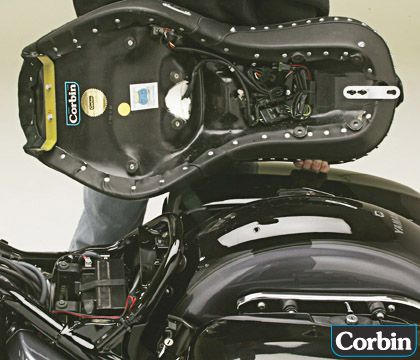

- Saddle includes bracket preinstalled on the seat that integrates with the mounting points on your chassis as shown here. Reusing the stock bolts, simply set the Corbin saddle in place and secure. Tighten the bolts to 10 ft lbs.

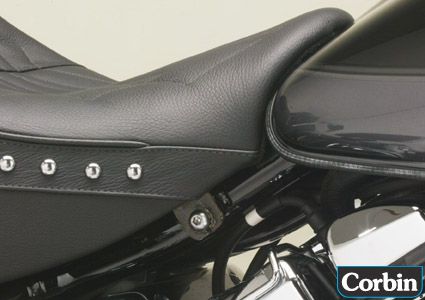

- In the rear, the saddle is secured to your fender with a chrome tab much like stock. You can either re-use the stock bolt or use one of our cool Chromed Billet thumbscrews #ACST-8M. Tab on Corbin seat is adjustable to assure a perfect fit.
- Corbin seats (with very few exceptions) include Genuine Leather Seating to provide a luxurious look and feel.
You will with his saddle! Corbin's Dual Tour not only provides you and a passenger with touring quality comfort, but also adds to the custom look of your Royal Star. For versatility and total luxury, this model works with the Yamaha sissy bar or with two Corbin backrests and the option of heated seating & a chrome V-rail. Our sculpted seating positions give proper weight distribution and allow long range capability. Generously contoured platforms eliminate hot sport and centralized pressure that causes discomfort. On the inside, our exclusive Comfort Cell foam material gives firm support that conforms to your body over time for a personalized fit. Naturally, Corbin's design team kept a nice flowing line that integrates with the bike's look.
Dual Touring Saddle accepts two removable rider's backrests or works with the factory Sissy Bar. Naturally, we offer a touring style sissy bar pad to keep your copilot happy and complete the custom look. Otherwise you can use a single Corbin backrest that transfers front to back as needed or get two backrests for full time use. Installation of the Corbin backrest is easy enough to make this possible at a moments notice. Simply slide the backrest shaft into the built in hardware and secure it in place with the provided setscrew. There is no need to remove the saddle from the bike for this procedure.
Both Corbin backrests are fully adjustable for a tailored fit to your posture and stature. In the front we have also engineered the backrest to fold down to make it easier to mount your bike. This special hardware (built into the saddle) also allows the backrest position fore and aft to be adjusted to your stature. Once the backrest is installed, both of these adjustments can be performed without removing the saddle. Angle adjustment is built into the backrest to tailor it's position to your body. Like the saddle itself, Corbin backrests and sissy bar pads are shaped to fit the curve of your body for better fit and greater comfort.
As you can see in this image, the ergonomic design of the Dual Touring saddle also gives a nice flowing shape on the bike for a clean look. Inside the saddle, Corbin's Comfort Cell foam provides a nice firm perch that supports your body indefinitely and doesn't cave in like softer materials. Comfort Cell feels firm when you first ride on it, but it is this support that gives you day long comfort. That's why we always say "Firm is a good thing". Notice also, the amount of vertical support offered by the bucket design of the Corbin saddle and integration of backrest... over 15 inches!

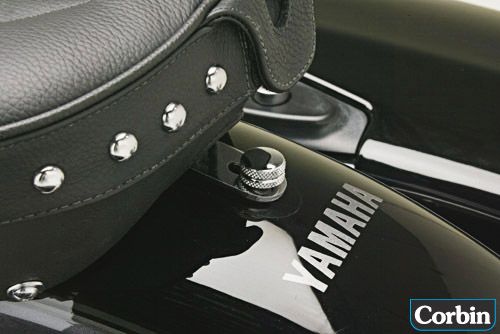

To add to the vintage appeal of the Dual Tour, we've integrated hardware for our Chrome V-Rail. With just four bolts (included), our show quality chrome rail bolts directly up to the saddle with no additional hardware. This provides an added bit of flair and really compliments the nostalgic look of the Royal Star (Note: V-rail will not install along with the Yamaha sissy bar.) For a very clean installation, you can also replace your stock seat tab screw with one of our Chromed Billet thumbscrews as shown (#ACST-8m). A very nice look and tool free installation!
We use genuine leather seating panels for a luxurious ride that breathes with your body. Leather is extremely durable and will break in along with the foam shape to conform to your body. Our standard Dual Tour comes in plain black for a very subdued look. If you prefer something with a bit more flair, we can add our custom stitch pattern (Sharp Deco shown) and chrome studs... or to play up the custom aspects of your bike, add a colored welt of your choice. All these options are available at no additional charge! Please note, heated seat models require the stitch pattern.
Speaking of heated seats... The ultimate luxury for those early morning rides. A single switch controls the heat for both the rider and passenger positions. The switch is conveniently located along the left side of the saddle so you can reach it without taking your hand off the throttle. The two position switch allows you to select a heat level depending on conditions. Once on, the level of heat is controlled automatically by a thermostat built into the control unit under the saddle. Of course, it is very simple to install into your stock wiring.
As a final bit of customization, Corbin's Ovalbac model backrests have interchangeable finishing plates on the rear. Choose from Leather look, Carbon-Fiber look, Aluminum look or primer if you'd like to have them painted. For a little extra we can provide on prepainted gloss black or a chromed steel model like the ones shown here. These integrate very nicely with the other chrome bits on your bike. The chrome backs blend in so nicely with the design that it's almost like camouflage!
Be sure to care for your leather saddle properly with a quality conditioner like our Saddle Cream. This will help the hyde to resist the elements and remain supple. The leather seating will conform along with the foam shape and provide a personalized fit to your posterior. Over time, your leather saddle will develop its own unique character just like your leather jacket does. Never use cleaners or conditioners that have a petroleum or kerosene base (as many commercial products do) as they will damage the hied and shorten its lifespan. With good care, your leather saddle will serve you well for many years to come.
It all started with a Norton Atlas over 50 years ago Now the Corbin name is synonymous with Quality, Hand Crafted motorcycle saddles worldwide. Hand built with pride in the USA using proprietary, purpose built materials and patented manufacturing processes. Unique, cutting edge designs that provide the perfect blend of form and function.
Over 1,400 part numbers means they offer more applications across more brands and models than any other motorcycle seat maker. Trends come and go, but quality never goes out of style.
Corbin offers more than 70 color and texture options for your custom build motorcycle seat at no additional charge. Corbin saddles include genuine leather seating for a truly luxurious ride that will last for years to come. Build your seat any way you like from mild to wild.
Corbin is proud to support the Championship winning team of Jared Mess and join forces with Memphis Shades to field up and comer Cole Zabala in the 2022 season.
It all started with a Norton Atlas over 50 years ago Now the Corbin name is synonymous with Quality, Hand Crafted motorcycle saddles worldwide. Hand built with pride in the USA using proprietary, purpose built materials and patented manufacturing processes. Unique, cutting edge designs that provide the perfect blend of form and function.
Over 1,400 part numbers means they offer more applications across more brands and models than any other motorcycle seat maker. Trends come and go, but quality never goes out of style.
Corbin offers more than 70 color and texture options for your custom build motorcycle seat at no additional charge. Corbin saddles include genuine leather seating for a truly luxurious ride that will last for years to come. Build your seat any way you like from mild to wild.
Corbin is proud to support the Championship winning team of Jared Mess and join forces with Memphis Shades to field up and comer Cole Zabala in the 2022 season.
Specifications:
UNIQUE TECHNOLOGY: The design and manufacture of Corbin products is so unique that Mike Corbin himself holds more than 60 United States Patents! From the process itself to new innovations like the Corbin Glovebox, you can count on highly functional and unique products that work. Corbin products are manufactured under one or more of the following US Patents: 6,848,156 B2; 6,729,516 B2; D 489,540S; 6,655,740 B1; 6,422,648 B1; 5,544,937; 5,608,957; 4,953,911; D545,073S & 6,971,714 B1.
FIBERTECH BASEPAN: A purpose built, hybrid material that provides a firm foundation to support the carefully designed ergonomics of the Corbin saddle. Provides a precision fit to every arc and contour of the machine and rides on rubber bumpers to protect your paint. We always design our basepans as flat as possible so bumps or odd shapes don't telegraph through the foam to your body.
COMFORT CELL FOAM: The heart of the Corbin saddle! Our exclusive, purpose built foam material, called Comfort Cell, was created to provide a firm, resilient ride that doesn't break down. This means it will support you for long days on the road. Over time, Comfort Cell will break in to provide a personalized fit to your posture and even greater comfort
ERGONOMIC SHAPING: A major part of the design criteria of the Corbin saddle is the Ergonomic shape. This means the saddle's foam shape is designed to emulate the curves of the human body. This provides more square inches of body contact and helps to eliminate hot spots. This shaping also neutralizes the seating platform to help curb sliding in the saddle which reduces fatigue. In a nutshell... more comfort for a longer ride!
PATENTED MANUFACTURING TECHNOLOGY: Always an innovator, Mike Corbin invented Integrated Molding technology which is now the process by which all Corbin saddles are made. This process allows extremely tight tolerances and creates a chemical bond between the foam and base material.
GENUINE LEATHER: We use leather in all panels of the seat that contact your body. This provides a luxurious ride that breathes with your body. Leather will also break in along with the foam shape to support the personalized fit. Available in a wide range of textures and styles to suit your taste.
CORBIN BACKREST SYSTEM: The first and most versatile removable backrest system available for motorcycles! Corbin's backrests provide added vertical back support and long range comfort. Supported by internal hardware for a very clean look. Backrests adjust to rider's profile for a tailored fit and install or remove easily as desired. A very popular option!
ELECTRIC HEAT: As an option we can include electric heat in this saddle! This option provides a true bit of luxury for when the temperature starts to drop. Simple to install with major components pre-built into the saddle. Just wire in the included pigtail and you're ready to roll.
