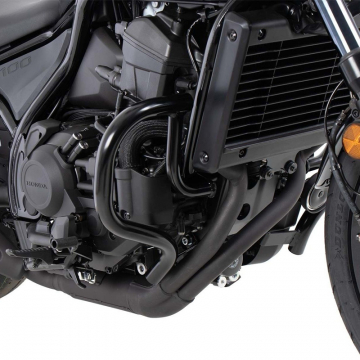

These crash bars are designed to provide reliable protection for the CMX1100 Rebel DCT, shielding key components while blending well with the bike’s frame and peg length.
Features:
-
Constructed from heavy-duty steel tubing with a black powder-coated finish that resists weather and corrosion.
-
Includes rubber frame protection strips and two-part clamps that help prevent paint damage during installation.
-
Installs directly to factory mounting points using included spacers, bolts, and threadlocker; no frame modification required.
-
Installation takes approximately 45 minutes though supporting the engine with a jack or air shim is recommended during the lower bolt removal step.
-
Designed specifically for the automatic transmission (DCT) model; heel guard and plastic cover must be removed and reinstalled during installation.
Total Weight: appr. 2.6 kg / appr. 5.8 lb
Additional notes: The crash bars include everything needed for installation—left and right bars, clamps, spacers, and hardware. Torque specs are provided in the instructions, and final alignment can be adjusted before tightening. Once installed, the bars maintain a clean look and do not interfere with lean angle under normal riding conditions.
