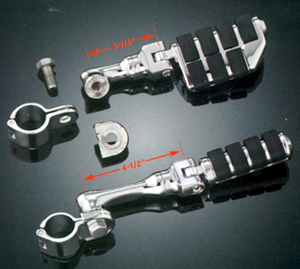

Clamp On Footpegs
Footpegs With Offset Mounts
and Magnum™ Quick Clamps
|

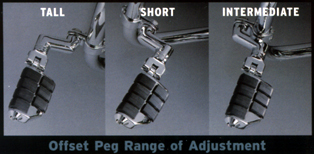

These highway pegs
utilize our unique offset mount
to allow riders a range of adjustment
not possible with other clamp-on
style highway pegs. The offset can
be rotated 360 degrees in a 4 diameter
circle to accommodate tall, short,
or average height riders. These
can be installed on any round tubing
(frames or engine guards), but it
is important to keep in mind that
the footpeg itself will end up perpendicular
to the bar to which it is mounted.
If your engine guard is angled in
such a way so that the peg will
not be level once installed, look
at our Right Angle Mounts.
Helpful Hint: If you are
unsure of the diameter of the tubing
on which you'd like to install the
highway pegs and don't have a dial
at your disposal, here is an easy
way to figure it out. You'll need
a piece of heavy paper or cardboard,
a ruler, a pencil, and a scissors.
Use the pencil and ruler to make
to marks on the edge of the paper
1" apart. Take the scissors and
cut lines perpendicular to the edge
of the paper at the marks you just
made. Fold the resulting flap of
paper out of the way. Next, take
the piece of paper to the bike and
check to see if the tubing will
slip into the opening you've made
in the edge of the paper. If the
opening is too small, repeat the
procedure enlarging the opening
to 1-1/8", 1-1/4", and 1.35" until
you find one that will fit.
|
| Small ISO®-Pegs
with Offset Mounts and Clamps (pair) |
 |
|
| Part# |
Description |
|
|
| KY7998 |
1-1/4" diameter
clamps |
 |
| Large ISO®-Pegs
with Offset Mounts and Clamps (pair) |
|
|
| Part# |
Description |
|
|
| KY7999 |
1-1/4" diameter
clamps |
|
|
| KY7933 |
1.35" diameter
clamps |
|
| Dually ISO®-Pegs
with Offset Mounts and Clamps (pair) |
|
|
| Part# |
Description |
|
|
| KY7976 |
1" diameter
clamps |
|
|
| KY7966 |
1-1/8" diameter
clamps |
|
|
| KY7993 |
1-1/4" diameter
clamps |
|
|
| KY7920 |
1.35" diameter
clamps |
|
| Pilot™ Pegs
with Offset Mounts and Clamps (pair) |
|
|
| Part# |
Description |
|
|
| KY4438 |
1" diameter
clamps |
|
|
| KY4437 |
1-1/8" diameter
clamps |
|
|
| KY4436 |
1-1/4" diameter
clamps |
|
|
|
Footpegs With Clevis and
Magnum™ Quick Clamps
|
This is our most
popular style of highway pegs. Using
Kuryakyn's Magnum Quick Clamp, they
are a snap to install and provide
long-haul comfort. There are several
styles of footpegs to choose from
with various size clamps to accommodate
most common engine guard diameters.
These can be installed on any round
tubing (frames or engine guards),
but it is important to keep in mind
that the footpeg itself will end
up perpendicular to the bar to which
it is mounted. If your engine guard
is angled in such a way so that
the peg will not be level once installed,
check out our right angle mounts.
Helpful Hint: If you are
unsure of the diameter of the tubing
on which you'd like to install the
highway pegs and don't have a dial
at your disposal, here is an easy
way to figure it out. You'll need
a piece of heavy paper or cardboard,
a ruler, a pencil, and a scissors.
Use the pencil and ruler to make
to marks on the edge of the paper
1" apart. Take the scissors and
cut lines perpendicular to the edge
of the paper at the marks you just
made. Fold the resulting flap of
paper out of the way. Next, take
the piece of paper to the bike and
check to see if the tubing will
slip into the opening you've made
in the edge of the paper. If the
opening is too small, repeat the
procedure enlarging the opening
to 1-1/8", 1-1/4", and 1.35" until
you find one that will fit.
|
| Large ISO®-Pegs
with Clevis and Clamps (pair) |
|
|
| Part# |
Description |
|
|
| KY8033 |
1-1/4" diameter
clamps |
|
|
| KY8031 |
1" diameter
clamps |
|
| Dually ISO®-Pegs
with Clevis and Clamps (pair) |
|
|
| Part# |
Description |
|
|
| KY4510 |
1" diameter
clamps |
|
|
| KY7988 |
1-1/8" diameter
clamps |
|
|
| KY7992 |
1-1/4" diameter
clamps |
|
| Small ISO®-Pegs
with Clevis and Clamps (pair) |
|
|
| Part# |
Description |
|
|
| KY8032 |
1-1/4" diameter
clamps |
|
|
| KY8030 |
1" diameter
clamps |
|
| Pilot™ Pegs
with Clevis and Clamps (pair) |
|
|
| Part# |
Description |
|
|
| KY4439 |
1" diameter
clamps |
|
|
| KY4435 |
1-1/4" diameter
clamps |
|
|
|
H-D Type Footpeg Adapters
with Adjustable Stop
| We have modified
our standard H-D type male footpeg
adapters with an adjustable stop which
now makes it possible to install conventional
clamp-on highway pegs on an engine
guard that would normally cause the
pegs to angle down toward the ground.
We have added a small setscrew to
the "heel" of the adapter. By adjusting
the position of the setscrew, the
angle of the footpeg can be adjusted.
Best suited for use with Kuryakyn
Footpegs with Clevis and Magnum Quick
Clamps. |
| Part# |
Description |
|
|
| KY8008A |
H-D Type Male Footpeg
Adapters with Adjustable Stop (pair) |
|
|
|
|
